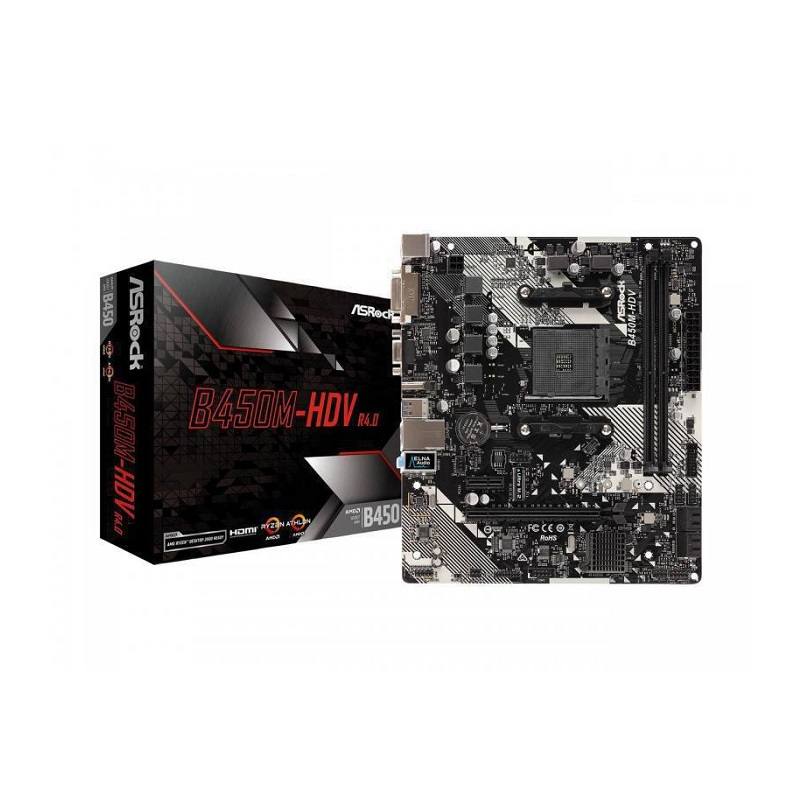

Tarjeta Madre ASROCK B450M-HDV R4.0, DDR4 3200, AM4 SATA 6Gb/s USB 3.1 HDMI, Micro ATX
Marca: ASROCK
Modelo: B450M-HDV R4.0
El Dorado: no disponible
La Chorrera: no disponible
$65.99 $64.01
Producto Similar
Ver más
Tarjeta Madre ASROCK B450M-HDV R4.0, DDR4 3200, AM4 SATA 6Gb/s USB 3.1 HDMI, Micro ATX

Especificaciones:

Marca
ASRock
Modelo
B450M-HDV R4.0

CPU soportada
Tipo de zócalo de CPU
AM4
Tipo de CPU
Serie ryzen

Chipsets
Chipset
Promontorio de AMD B450

Memoria
Número de ranuras de memoria
2 × 288pin
Memoria estándar
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory*

* For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs.
Maximum Memory Supported
32GB*
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported
Dual Channel

Expansion Slots
PCI Express 3.0 x16
AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
AMD Ryzen series CPUs (Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
AMD Athlon series CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*

* Supports NVMe SSD as boot disks
PCI Express x1
1 x PCI Express 2.0 x1 Slot

Storage Devices
SATA 6Gb/s
4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
M.2
1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16Gb/s) (with Athlon 2xxGE series APU)*

* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
SATA RAID
0/1/10

Onboard Video
Onboard Video Chipset
Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
DirectX 12, Pixel Shader 5.0
Shared memory default 2GB. Max Shared memory supports up to 16GB.**
Three graphics output options: D-Sub, DVI-D and HDMI
Supports Triple Monitor
Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24 Hz / (3840x2160) @ 30 Hz
Supports DVI-D with max. resolution up to 1920x1200 @ 60 Hz
Supports D-Sub with max. resolution up to 2048x1536 @ 60 Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports HDCP 1.4 with DVI-D and HDMI Ports
Supports 4K Ultra HD (UHD) playback with HDMI Port

* Actual support may vary by CPU
** The Max shared memory 16GB requires 32GB system memory installed

Onboard Audio
Audio Chipset
Realtek ALC887
Audio Channels
7.1 Channels

Onboard LAN
LAN Chipset
Realtek RTL8111H
Max LAN Speed
10/100/1000Mbps

Rear Panel Ports
Back I/O Ports
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O Connectors
Onboard USB
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors
1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)**
1 x Front Panel Audio Connector

* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
** The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

Physical Spec
Form Factor
Micro ATX
Dimensions (W x L)
9.0" x 7.9"
Power Pin
1 x 24-pin ATX Power Connector
1 x 4-pin 12V Power Connector

Features
Features
Característica única:
ASRock Super Alloy
- Tejido de vidrio de alta densidad PCB
- Zafiro PCB negro
ASRock Ultra M.2 (PCIe Gen3 x4 y SATA3)
ASRock Full Spike Protection (para todos los puertos USB, audio, LAN)
ASRock Live Update y APP Shop

BIOS:
- 128MB AMI UEFI BIOS legal con compatibilidad con GUI
- Admite "Plug and Play"
- Eventos de
activación de conformidad con ACPI 5.1 - Compatible con jumperfree
- Compatibilidad con SMBIOS 2.3

Software DRAM de ajuste múltiple de voltaje y UEFI:
Software
- ASRock A-Tuning
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer
* Estas utilidades se pueden descargar desde ASRock Live Update & APP Shop.

CD de soporte:
- Controladores, utilidades, software antivirus (versión de prueba), navegador de Google Chrome y

monitor de hardware de la barra de herramientas :
- CPU / chasis sensor de temperatura
- CPU / chasis ventilador tacómetro
- CPU / chasis silencioso ventilador
- CPU / chasis ventilador control de varias velocidades
- Detección de CASE OPEN
- Monitoreo de voltaje: + 12V, + 5V, + 3.3V, Vcore

OS:

Certificaciones de Microsoft Windows 10 de 64 bits :
- FCC, CE
- Preparado para ErP / EuP (se requiere fuente de alimentación ErP / EuP)

Embalaje
contenidos del paquete
Accesorios:
- Guía de instalación rápida, CD de soporte, protector de E / S
- 2 x cables de datos SATA
- 1 x tornillo para zócalo M.2
